Idea 042 - GPIO tester breakout board

This post is part of the 100 project ideas project. #The100DayProject. I am looking for feedback. Comment below or DM me via social media Instagram, Twitter.

One Line Pitch

A 8 position dip switches breakout board

Description

I have been developing some electronic boards using development boards. It would be useful for my current project to have a breakout board that can be used for GPIO testing

There would be 8 switches that have the following states

• High - Connected to VIN
• Low - Connected to GND

A6S-8104-H, Digi-Key Part Number: SW1017-ND

Each switch connect to a pin header, VIN, GND

Boring little device but it would have saved me a couple hours of testing this week.

Prior art

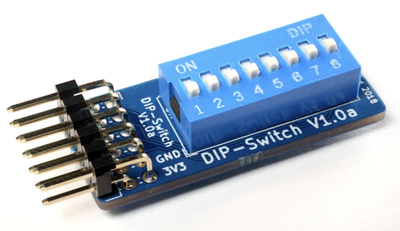

• PMOD DIP Switch - Exactly what I am looking for. Just buy this instead.
